Tootekategooria: BSPT keermestatud toruliitmike adapter
BSPT niidisuuruste tabel: G1 / 8 ”G3”, kasutatakse peamiselt Suurbritannias, Lääne-Euroopas ja Jaapanis.
BSPT (R) välis- ja sisekeerme standard vastavalt standardile BS 21, ISO 7/1. JIS B 0203, sarnane 3852-2-ga, vorm Z, JIS B8363.
Keermestatud tüüpi torude jaoks: Npt-adapter, SAE ORB-adapter, BSPP, Metric, UNF-liitmikud,

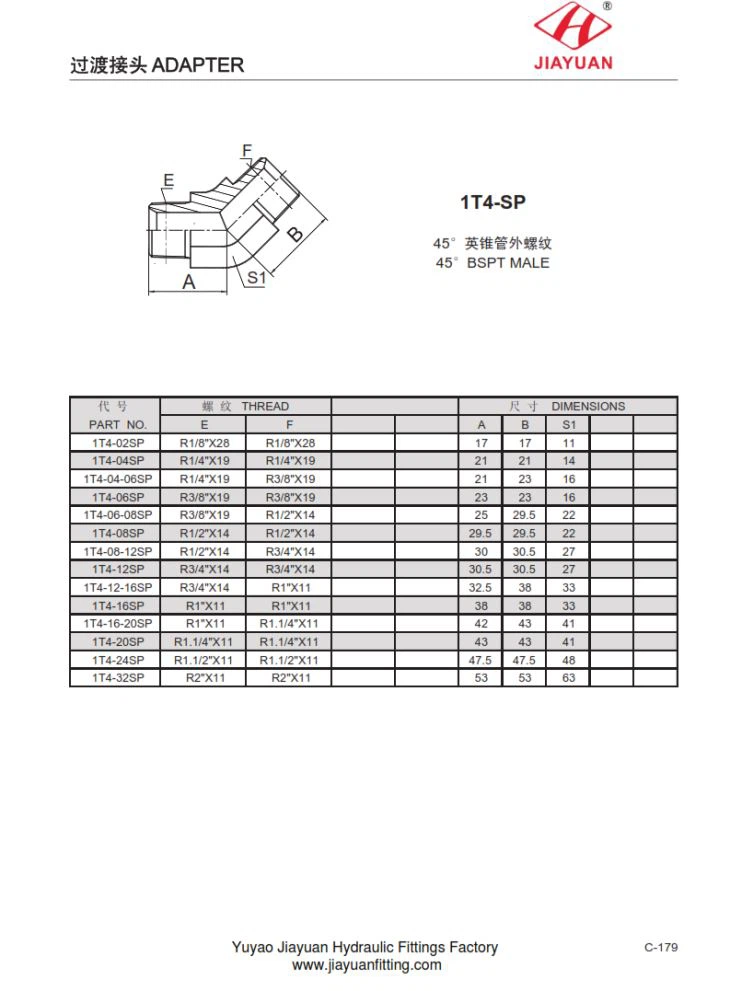

1T4-SP 45 ° BSPT MALE
OSA nr. | KOLM | MÕÕTMED | |||||
E | F | A | B | S1 | |||
1T4-02SP | R1 / 8 "X28 | R1 / 8 "X28 | 17 | 17 | 11 | ||
1T4-04SP | R1 / 4 "X19 | R1 / 4 "X19 | 21 | 21 | 14 | ||
1T4-04-06SP | R1 / 4 "X19 | R3 / 8 "X19 | 21 | 23 | 16 | ||
1T4-06SP | R3 / 8 "X19 | R3 / 8 "X19 | 23 | 23 | 16 | ||
1T4-06-08SP | R3 / 8 "X19 | R1 / 2 "X14 | 25 | 29,5 | 22 | ||
1T4-08SP | R1 / 2 "X14 | R1 / 2 "X14 | 29,5 | 29,5 | 22 | ||
1T4-08-12SP | R1 / 2 "X14 | R3 / 4 "X14 | 30 | 30,5 | 27 | ||
1T4-12SP | R3 / 4 "X14 | R3 / 4 "X14 | 30,5 | 30,5 | 27 | ||
1T4-12-16SP | R3 / 4 "X14 | R1 "X11 | 32,5 | 38 | 33 | ||
1T4-16SP | R1 "X11 | R1 "X11 | 38 | 38 | 33 | ||
1T4-16-20SP | R1 "X11 | R1.1 / 4 "X11 | 42 | 43 | 41 | ||
1T4-20SP | R1.1 / 4 "X11 | R1.1 / 4 "X11 | 43 | 43 | 41 | ||
1T4-24SP | R1.1 / 2 "X11 | R1.1 / 2 "X11 | 47,5 | 47,5 | 48 | ||
1T4-32SP | R2 "X11 | R2 "X11 | 53 | 53 | 63 | ||
